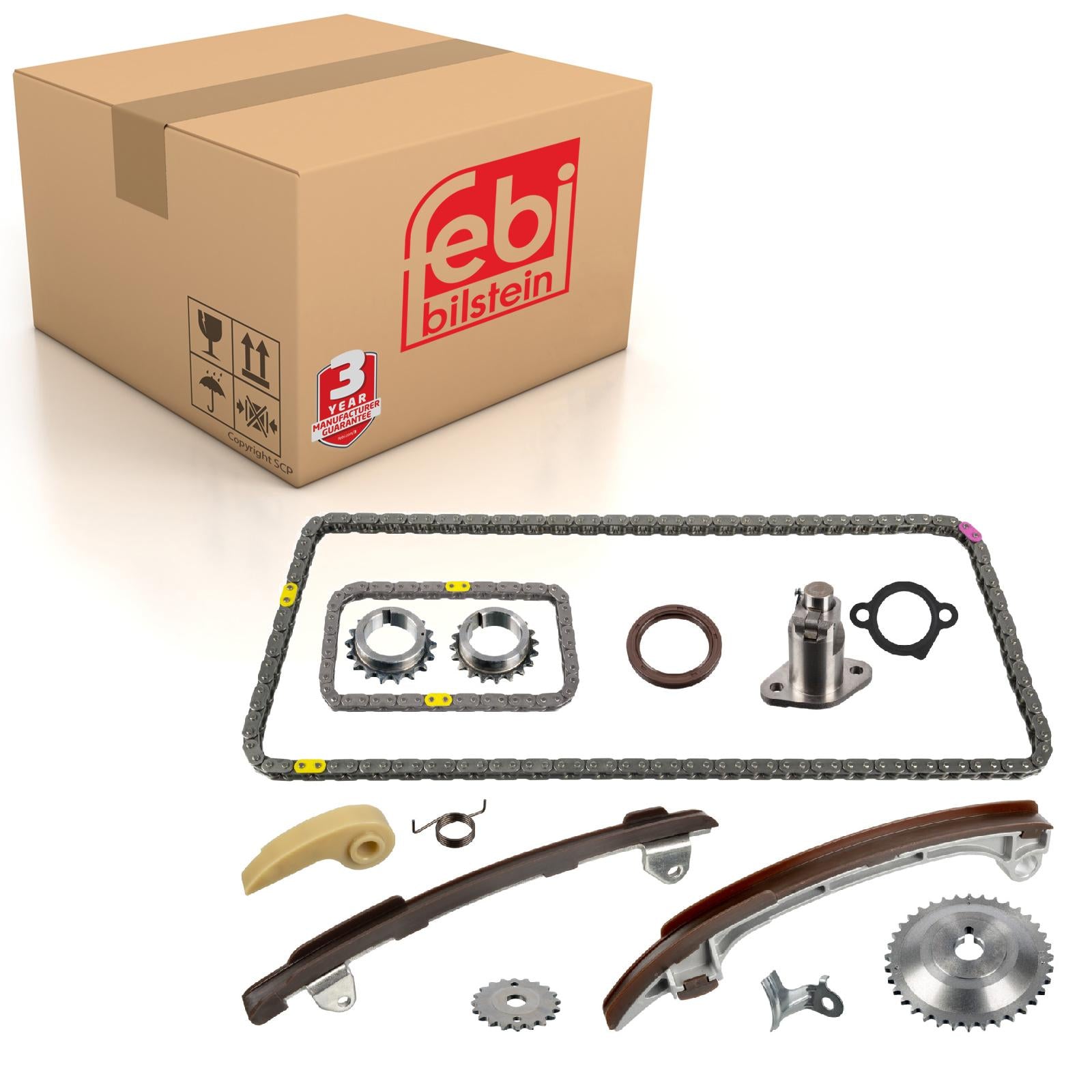

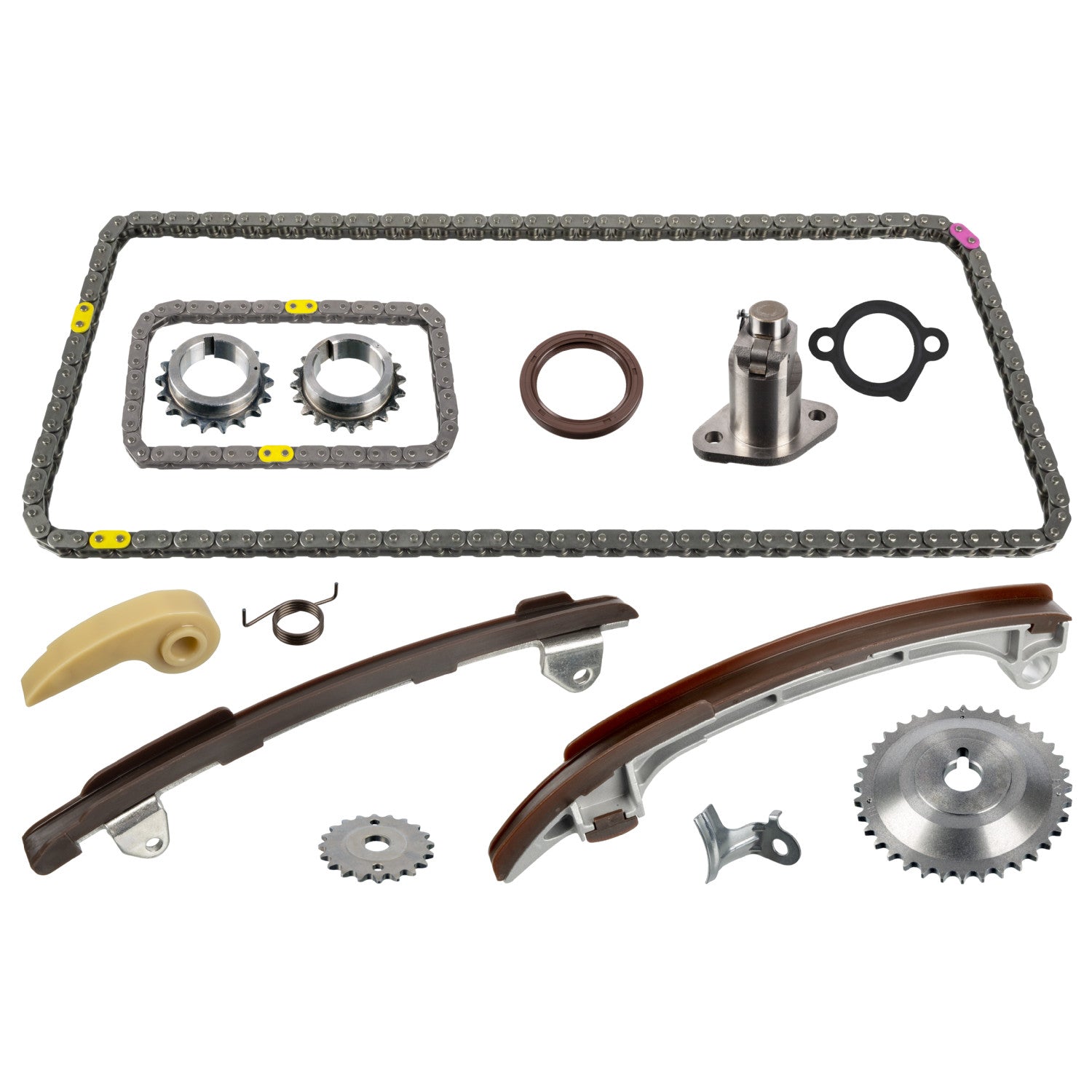

Kit Contents
| Part No. | Part | Qty | OE |
|---|---|---|---|
| 100067 | Timing Chain | 1 | 13506-28011 |
| Not sold separately | Chain Tensioner for timing chain | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| 106139 | Guide Rail | 1 | 13561-28010 |
| Not sold separately | Sprocket for camshaft | 1 | |
| 100069 | Chain | 1 | 13507-28010 |
| Not sold separately | Guide Rail for oil pump drive | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| Not sold separately | Sprocket for crankshaft | 1 | |
| Not sold separately | Sprocket for oil pump | 1 | |
| Not sold separately | Spring for tensioning rail | 1 | |
| 101159 | Shaft Seal | 1 | 90311-W0013 |
| Not sold separately | Sprocket for oil pump | 1 | |
| Not sold separately | Gasket for chain tensioner | 1 |
Specifications
- Chain Pitch: 8 mm
- Chain Type: Simplex
- Kit Specification: Full Kit
- Masterlink Type: not applicable (""endless"" chain)
- No. of Chain Links: 134
- No. of Chain Links: 52
Original Manufacturer part number this will replace (OE)
- Toyota: 13506-28011 S2, 13507-28010 S2, 13519-28010 S2, 13521-28030 S2, 13523-22020 S4, 13549-28012 S2, 13552-28010 S2, 13559-28010 S2, 13561-28010 S2, 13565-28012 S2, 13566-28010 S2
Other Brands equivalent part number
- Blue Print: ADBP730008
- FAI: TCK33, TCK33VVT, TCK33WO
- Febi Bilstein 109428
- LUCAS (TRW): LKTC33, LKTC33-15, LKTC33-17, LKTC81, LKTC83-15
- Ruville: 3469016, 3469017S
- Topran: 600 801, 600 802, 600 804
OE Part Number: 1350628011S2 | 1350728010S2 | 1351928010S2 | 1352128030S2 | 1352322020S4 | 1354928012S2 | 1355228010S2 | 1355928010S2 | 1356128010S2 | 1356528012S2 | 1356628010S2
Other Part Numbers: ADBP730008 | TCK33 | LKTC81 | 3469017S | 600804 | LKTC33 | LKTC3315 | LKTC3317 | LKTC8315 | 3469016 | 600801 | 600802 | TCK33WO | TCK33VVT | 109428
