Important Part Notes

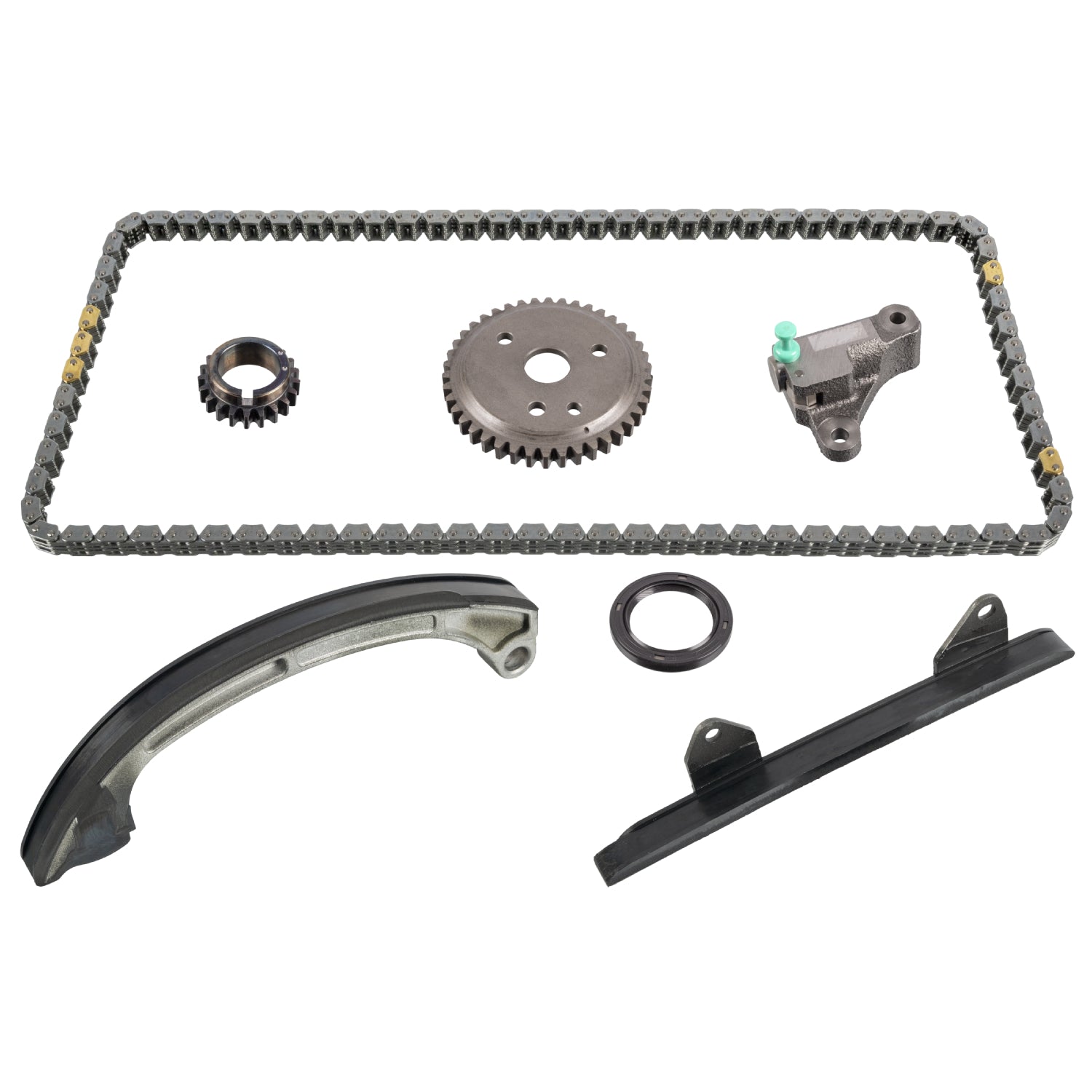

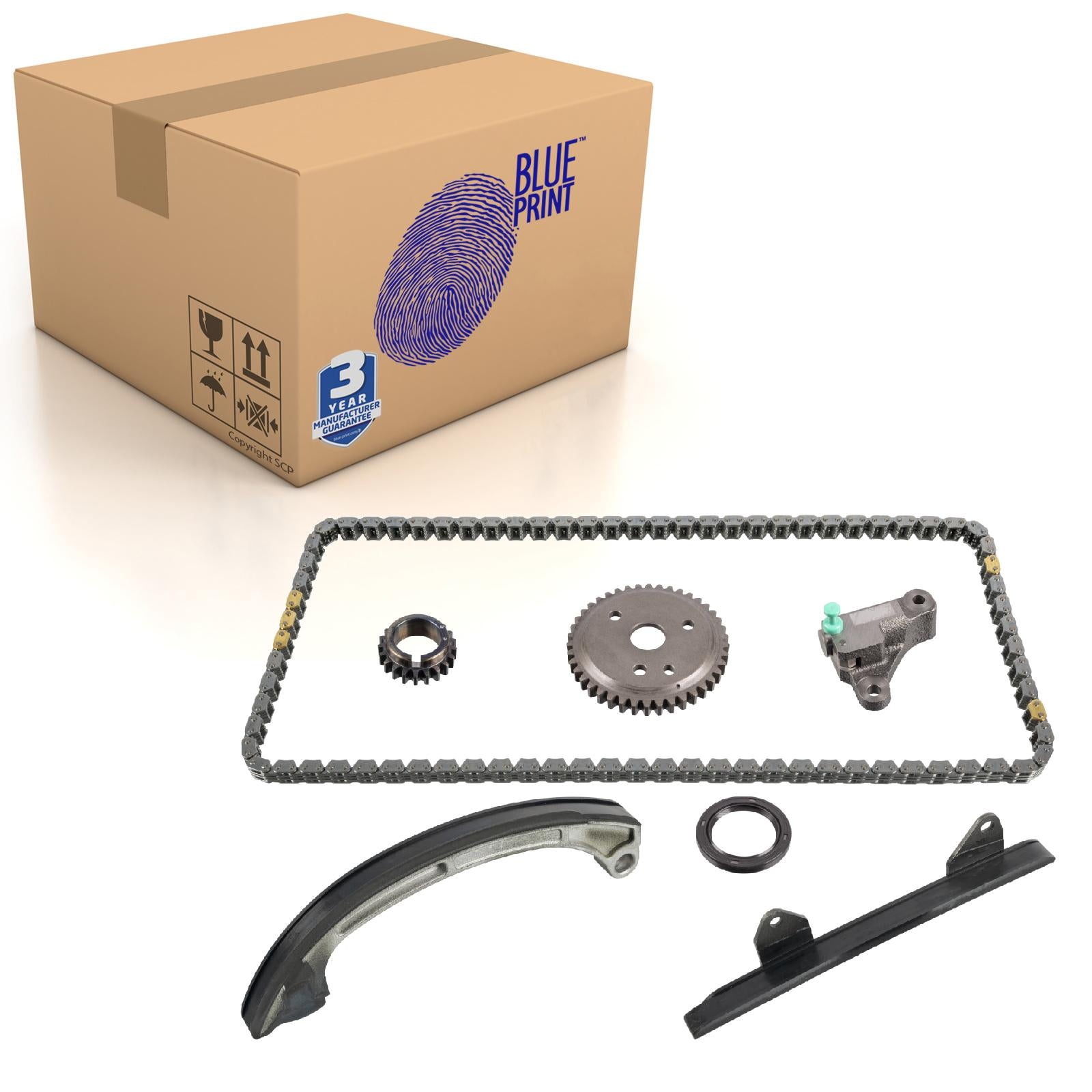

Please refer to the photo and contents list to accurately identify the items included with delivery. Check the sprockets for wear and replace if necessary.
Additional Info: For Camshaft
Kit Contents
| Part No. | Part | Qty | OE |
|---|---|---|---|
| ADT373509 | Timing Chain | 1 | 13506-23020 |
| Not sold separately | Chain Tensioner for timing chain | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| Not sold separately | Sprocket for camshaft | 1 | |
| Not sold separately | Sprocket for crankshaft | 1 | |
| ADT36146 | Shaft Seal | 1 | 90311-35040 |
Specifications
- Chain Type: Toothed Chain
- Kit Specification: Medium Kit
- Masterlink Type: Not Applicable ("Endless" Chain)
- No. Of Chain Links: 158
- Weight (kg): 1.176
Original Manufacturer part number this will replace (OE)
- Toyota: 13506-23020 S1, 13521-23020 S1, 13523-0J010 S3, 13523-23050 S3, 13566-23020 S1, 13591-23020 S1, 90311-35040 S1
Other Brands equivalent part number
- Blue Print: ADT37357
- Corteco: 19026732B
- Dayco: KTC1007, TCH1007
- FAI: TCK56VVT, TCK82
- Febi Bilstein 108827
- INA: 558 0054 10
- LUCAS (TRW): LKTC56-15, LKTC56-17, LKTC82, LKTC82-17
- Nipparts: N1152017
- SKF: VKML 91002, VKML 91010
OE Part Number: 1350623020S1 | 1352123020S1 | 135230J010S3 | 1352323050S3 | 1356623020S1 | 1359123020S1 | 9031135040S1
Other Part Numbers: TCK82 | 108827 | VKML91002 | VKML91010 | KTC1007 | TCH1007 | 19026732B | 558005410 | LKTC5615 | LKTC5617 | LKTC82 | LKTC8217 | TCK56VVT | N1152017 | ADT37357
