Important Part Notes
Please refer to the photo and contents list to accurately identify the items included with delivery. Check the sprockets for wear and replace if necessary.
Additional Info: For Camshaft
Specifications
- Chain Type: Simplex
- Kit Specification: Short Kit
- Masterlink Type: Not Applicable ("Endless" Chain)
- No. Of Chain Links: 76/ 84
- Weight (kg): 1.603

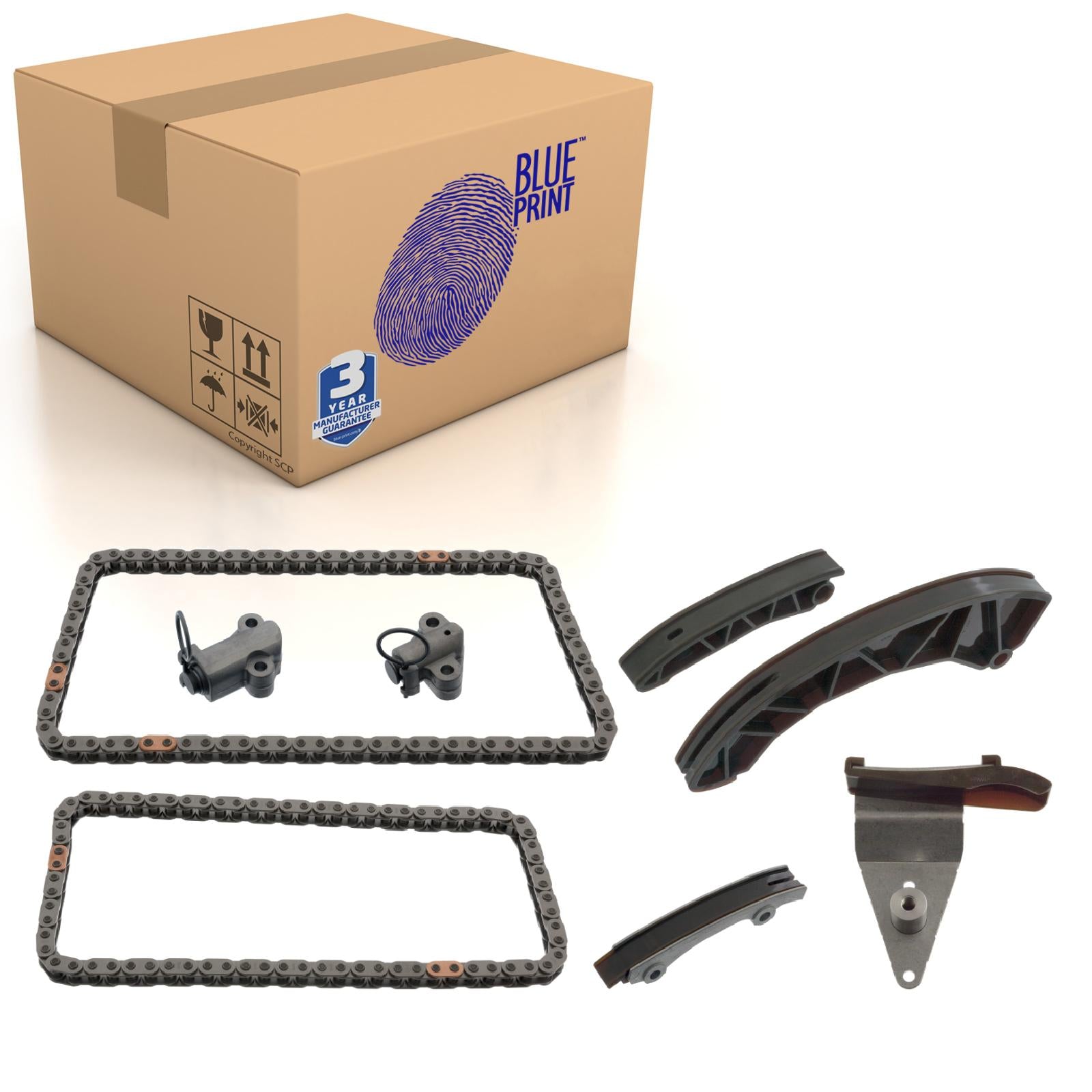

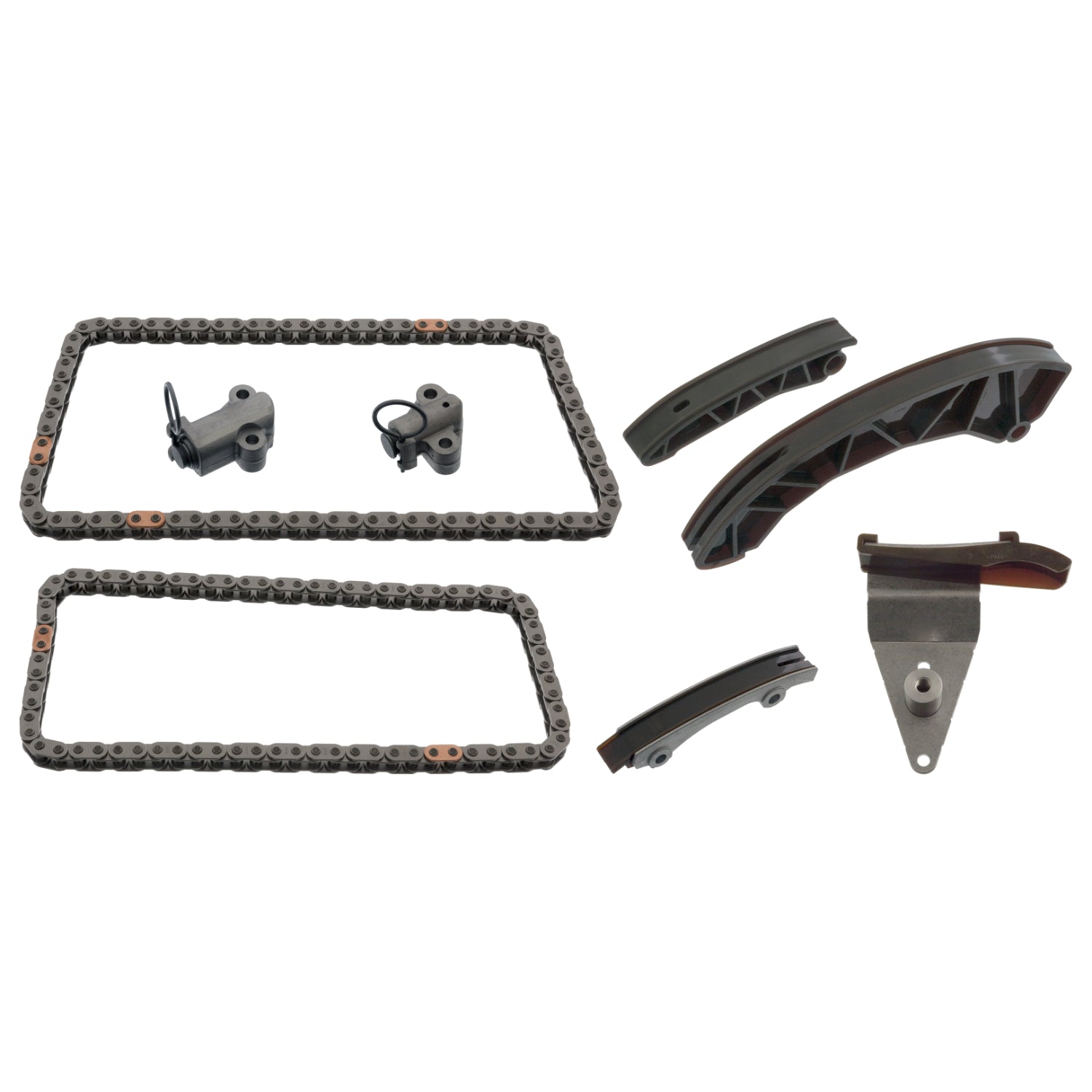

Kit Contents
| Part No. | Part | Qty | OE | Description |
|---|---|---|---|---|
| 31002 | Camshaft Timing Chain | 1 | 243512A000 |
|
| ADG07373 | Injection Pump Chain | 1 | 243612A000 |
|
| 49391 | Timing Chain Chain Tensioner | 1 | 244102A000 |
|
| ADBP760070 | Timing Chain Chain Tensioner | 1 | 243702A000 |
|
| 49393 | Guide Rail | 1 | Not sold separately | |
| 49394 | Guide Rail | 1 | Not sold separately | |
| 49395 | Guide Rail | 1 | Not sold separately | |
| 107374 | Guide Rail | 1 | Not sold separately |
Original Manufacturer part number this will replace (OE)
- Hyundai: 24351-2A000 S2, 24361-2A000 S2, 24376-2A000 S2, 24377-2A000 S2, 24386-2A000 S2, 24387-2A010 S2
- KIA: 24351-2A000 S2, 24361-2A000 S2, 24376-2A000 S2, 24377-2A000 S2, 24386-2A000 S2, 24387-2A010 S2
Other Brands equivalent part number
- Blue Print: ADG07383
- Febi Bilstein 107377
- INA: 559 0124 10, 559 0125 10
- LUCAS (TRW): LKTC79, LKTC79-17
- SKF: VKML 95003
OE Part Number: 243512A000S2 | 243612A000S2 | 243762A000S2 | 243772A000S2 | 243862A000S2 | 243872A010S2 | 243512A000S2 | 243612A000S2 | 243762A000S2 | 243772A000S2 | 243862A000S2 | 243872A010S2
Other Part Numbers: 107377 | 559012410 | LKTC79 | LKTC7917 | VKML95003 | 559012510 | ADG07383
