Important Part Notes

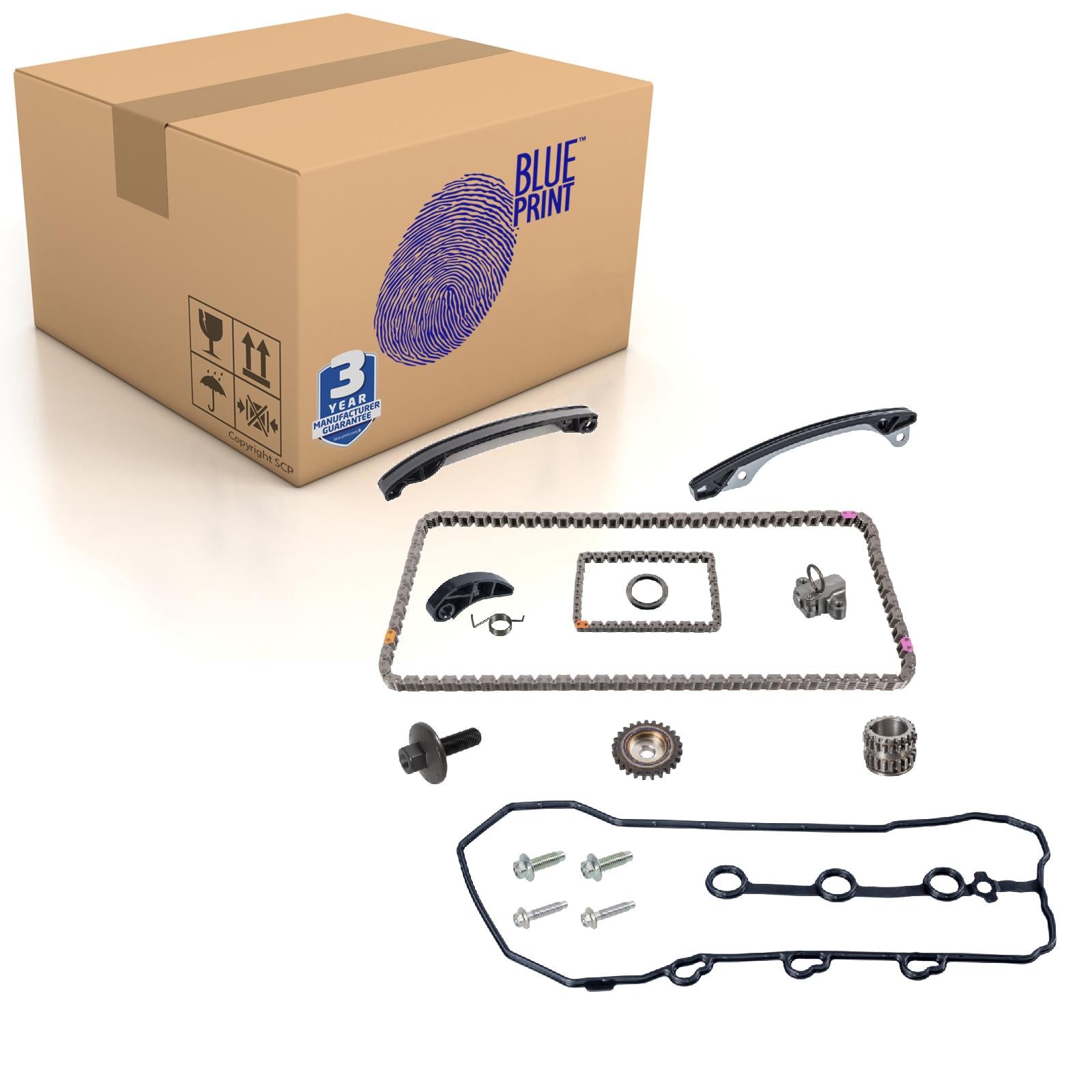

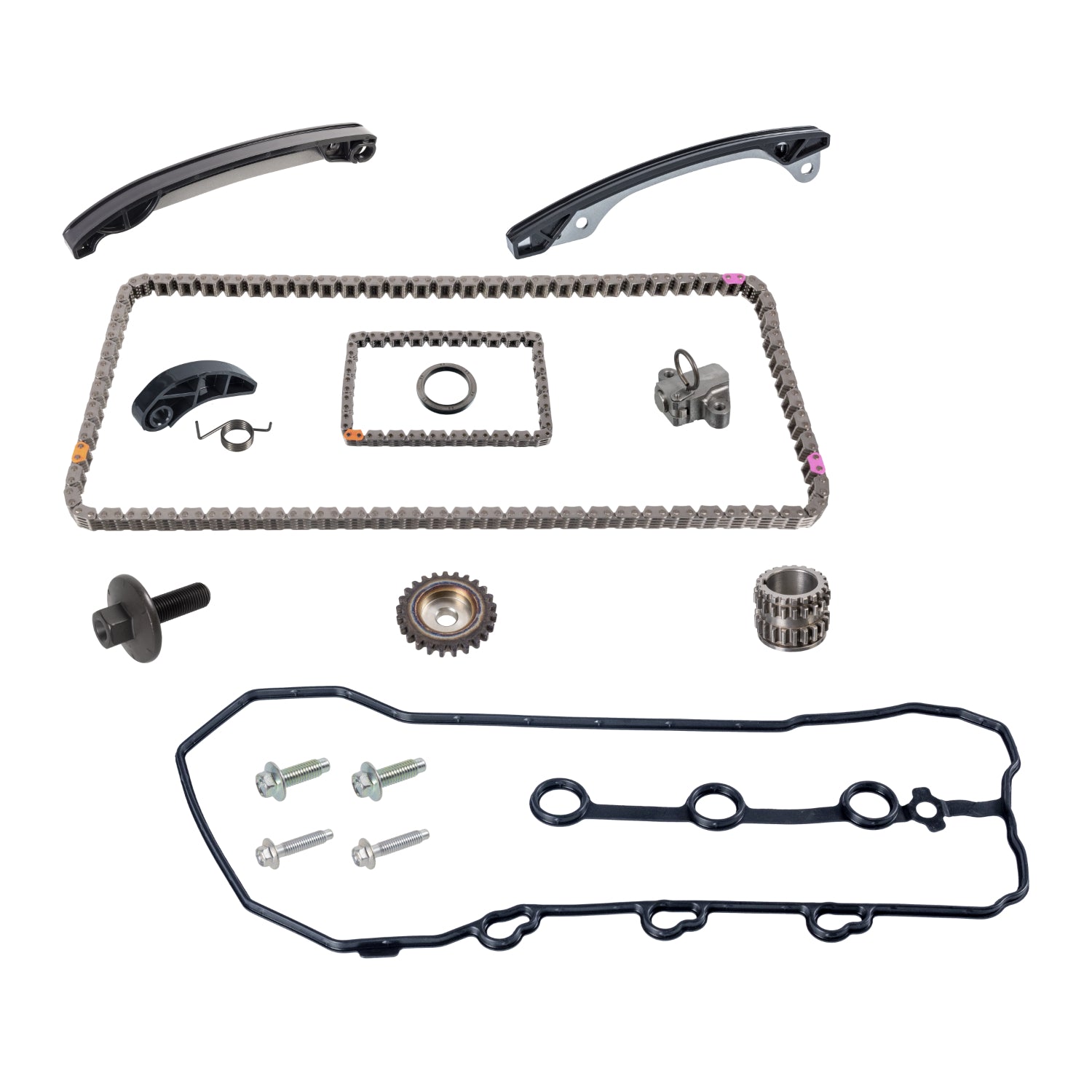

Please refer to the photo and contents list to accurately identify the items included with delivery. Check the sprockets for wear and replace if necessary.
Additional Info: For Camshaft
Kit Contents
| Part No. | Part | Qty | OE |
|---|---|---|---|
| ADN17324 | Timing Chain | 1 | 13028-1KT0A |
| ADBP610005 | Chain | 1 | 15041-1KT0A |
| Not sold separately | Chain Tensioner for oil pump drive | 1 | |
| ADBP760022 | Chain Tensioner | 1 | 13070-1HC0A |
| Not sold separately | Guide Rail for timing chain | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| Not sold separately | Sprocket for crankshaft | 1 | |
| Not sold separately | Sprocket for oil pump | 1 | |
| ADN16776 | Rocker Cover Gasket | 1 | 13270-3HD0A |
| ADN16145 | Crankshaft Seal | 1 | 13510-1HC0A |
| Not sold separately | Bolt for crankshaft sprocket | 1 | |
| Not sold separately | Bolt for chain tensioner | 2 | |
| Not sold separately | Bolt for camshaft sprocket | 2 |
Specifications
- Chain Pitch: 9 mm
- Chain Type: toothed / silent chain
- Kit Specification: Full Kit
- Masterlink Type: not applicable ("endless" chain)
- No. of Chain Links: 152
- No. of Chain Links: 60
Original Manufacturer part number this will replace (OE)
- Nissan: 13028-1KT0A S3
OE Part Number: 13028-1KT0A S3
