Important Part Notes

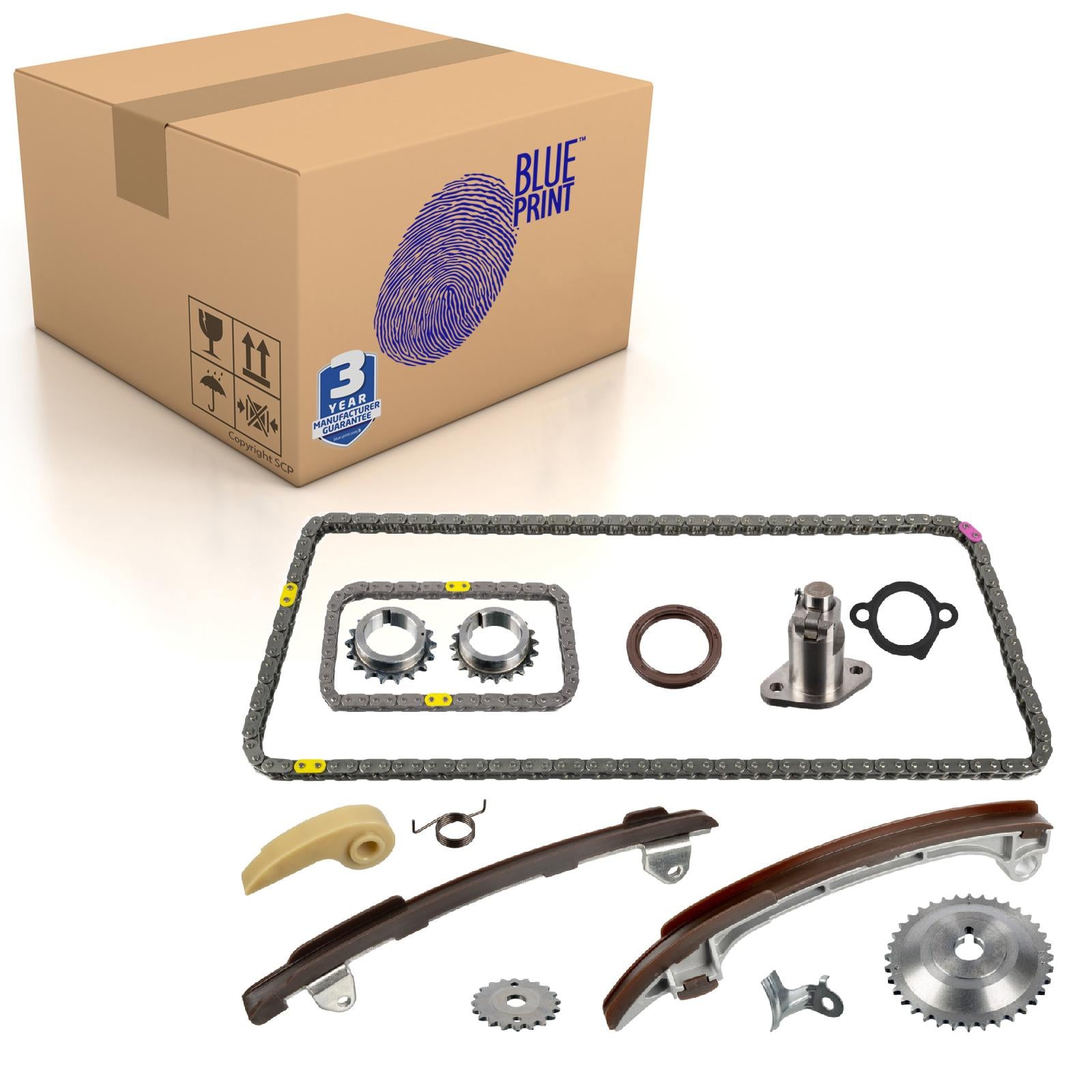

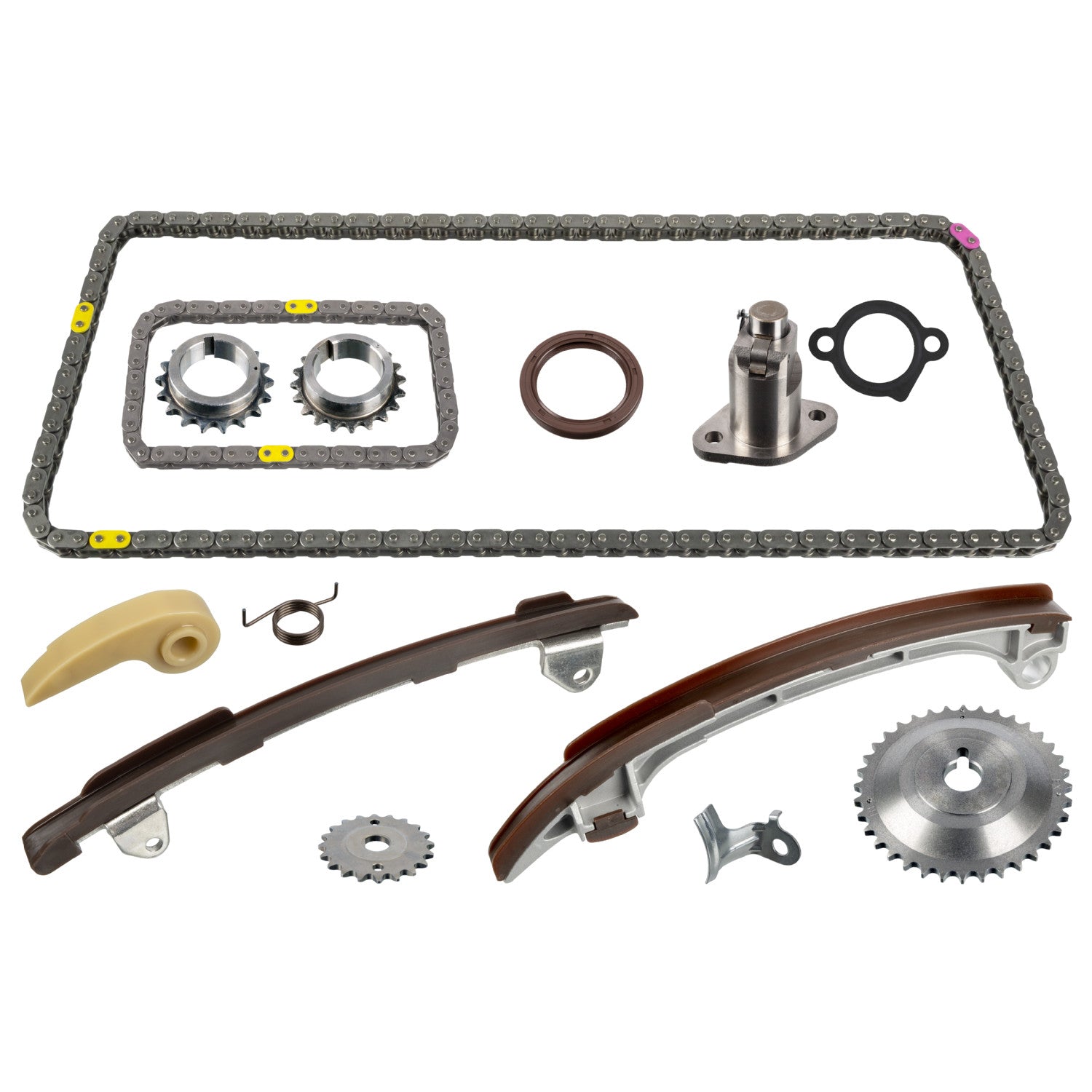

Please refer to the photo and contents list to accurately identify the items included with delivery. Check the sprockets for wear and replace if necessary.
Additional Info: For Camshaft
Kit Contents
| Part No. | Part | Qty | OE |
|---|---|---|---|
| ADT37340 | Timing Chain | 1 | 13506-28011 |
| ADBP760128 | Chain Tensioner for timing chain | 1 | 13540-0H030 |
| Not sold separately | Guide Rail for timing chain | 1 | |
| ADBP760130 | Guide Rail | 1 | 13561-28010 |
| Not sold separately | Sprocket for camshaft | 1 | |
| ADT37342 | Chain | 1 | 13507-28010 |
| Not sold separately | Guide Rail for oil pump drive | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| ADBP610383 | Sprocket for crankshaft | 1 | 13521-28030 |
| ADBP610384 | Sprocket for oil pump | 1 | 13519-28010 |
| Not sold separately | Spring for tensioning rail | 1 | |
| ADBP610112 | Shaft Seal | 1 | 90311-W0013 |
| Not sold separately | Sprocket for oil pump | 1 | |
| Not sold separately | Gasket for chain tensioner | 1 |
Specifications
- Chain Type: Simplex
- Masterlink Type: Not Applicable ("Endless" Chain)
- No. Of Chain Links: 134 / 52
- Weight (kg): 1.319
Original Manufacturer part number this will replace (OE)
- Toyota: 13506-28011 S2, 13507-28010 S2, 13519-28010 S2, 13521-28030 S2, 13523-22020 S4, 13549-28012 S2, 13552-28010 S2, 13559-28010 S2, 13561-28010 S2, 13565-28012 S2, 13566-28010 S2
Other Brands equivalent part number
- Blue Print ADBP730008
- FAI: TCK33, TCK33VVT, TCK33WO
- Febi Bilstein: 109428
- LUCAS (TRW): LKTC33, LKTC33-15, LKTC33-17, LKTC81, LKTC83-15
- Ruville: 3469016, 3469017S
- Topran: 600 801, 600 802, 600 804
OE Part Number: 13506-28011 S2
