Important Part Notes

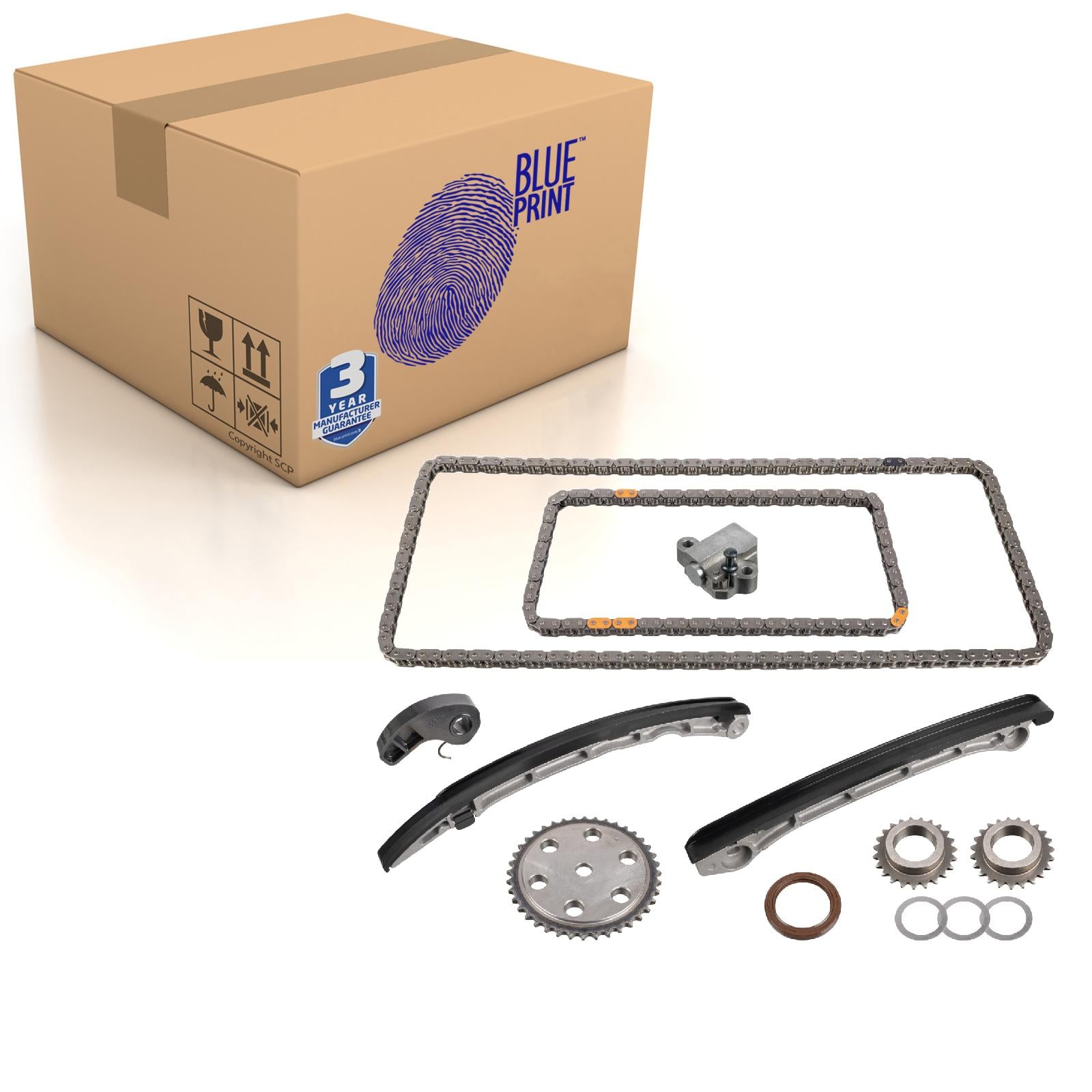

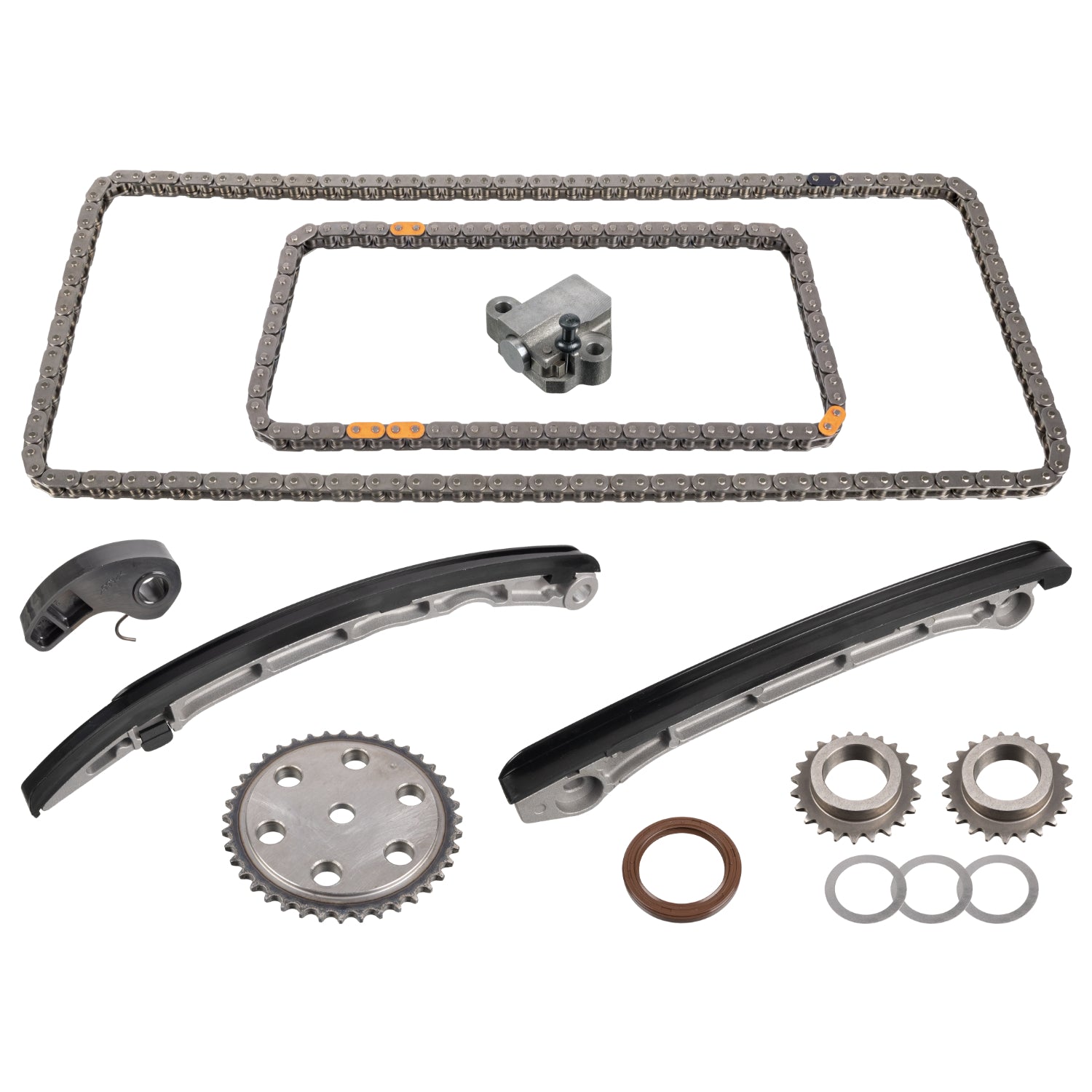

Please refer to the photo and contents list to accurately identify the items included with delivery. Check the sprockets for wear and replace if necessary.
Additional Info: For Camshaft
Fitting Position: front side
Kit Contents
| Part No. | Part | Qty | OE |
|---|---|---|---|
| ADM57329 | Timing Chain | 1 | L3K9-12-201A |
| Not sold separately | Chain Tensioner for timing chain | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| Not sold separately | Guide Rail for timing chain | 1 | |
| ADM561502 | Chain | 1 | LF2L-14-151 |
| Not sold separately | Sprocket for camshaft | 1 | |
| Not sold separately | Sprocket Set for oil pump | 1 | |
| ADBP610368 | Crankshaft Seal | 1 | L3G6-10-602 |
| Not sold separately | Chain Tensioner for oil pump drive | 1 |
Specifications
- Chain Type: Simplex
- Masterlink Type: Not Applicable ("Endless" Chain)
- No. Of Chain Links: 138 / 62
- Weight (kg): 1.486
Original Manufacturer part number this will replace (OE)
- Ford US: 1S7Z6A859AA
- Mazda: L3G6-10-602 S2, L3K9-11-31XA S2, L3K9-12-201A S2, L3K9-12-425A S2, L3K9-12-614 S2, L3K9-12-671 S2
Other Brands equivalent part number
- Blue Print ADBP730002
- Corteco: 19016600B, 19026178B
- DT: 13.46012
- FAI: TCK363VVT
- Febi Bilstein: 170115
- LUCAS (TRW): LKTC85
- Topran: 302 173
OE Part Number: L3K9-12-201A S2
