Fits Rear
Fitting Position: Rear Axle
 |

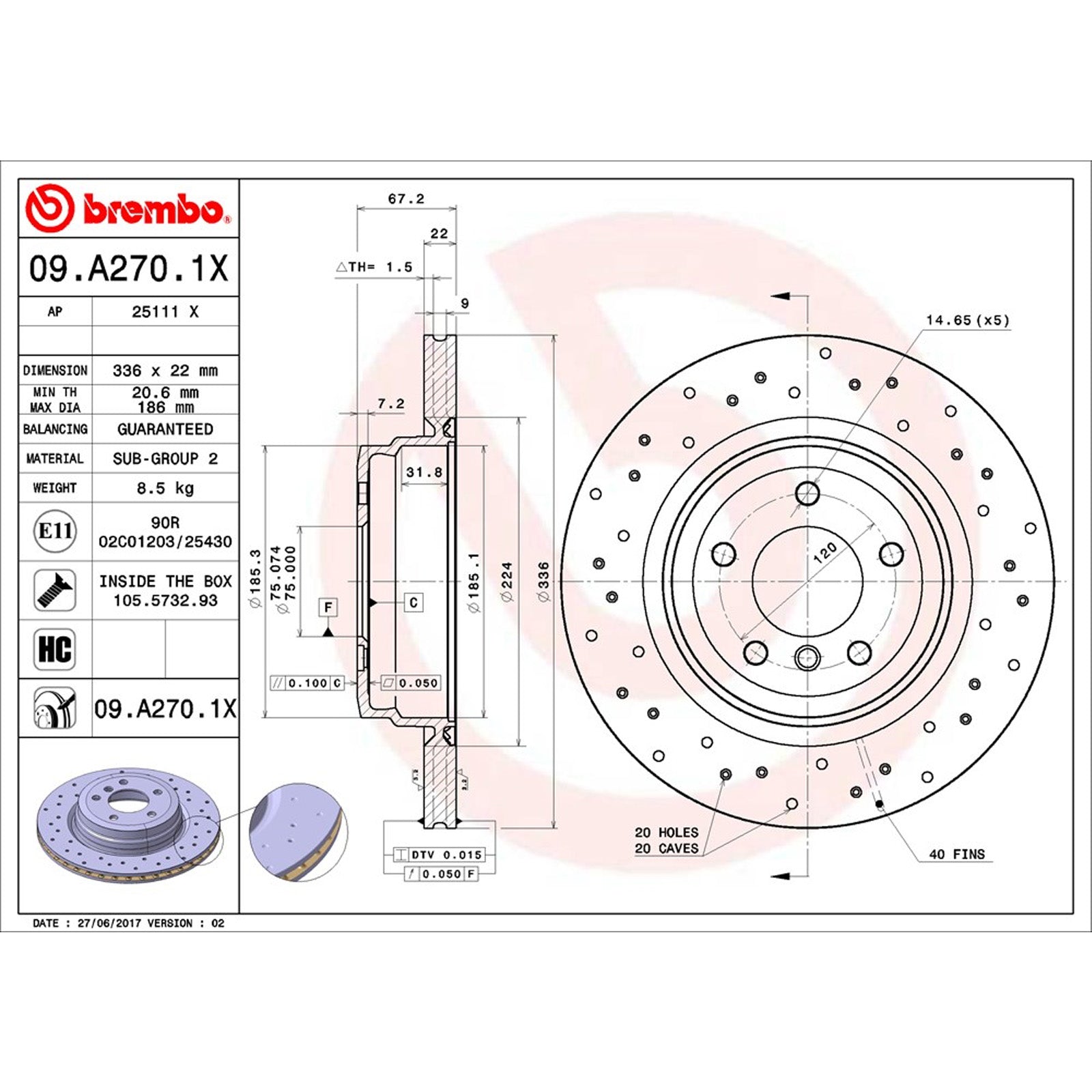

Specifications
Brake Disc Thickness: 22mm
Brake Disc Type: Internally Vented
Min Thickness Of Brake Disc: 20.4mm
No. Of Fixing Holes: 1
No. Of Wheel Bolt/ Stud Holes: 5
Surface: Coated
|
 |
Diameter
Centre Diameter: 75mm
Outer Diameter: 336mm
Pitch Circle Diameter: 120mm
|
 |
Dimensions
Height Or Thickness: 67.1mm
Weight: 8.72kg
|
Make and model this part will fit
BMW 3 Series (E90 LCI), 3 Series (E90), 3 Series (E91 LCI), 3 Series (E91), 3 Series (E92 LCI), 3 Series (E92), 3 Series (E93 LCI), 3 Series (E93), X1 (E84)Original Manufacturer part number this will replace (OE)
BMW: 34 21 6 764 655, 34 21 6 855 004Other Brands equivalent part number
A.B.S.: 17660, 09.A270.11
APEC Braking: DSK2407, SDK6459
Bendix: 521285
Borg & Beck: BBD4473
Brake Engineering: DI956511S
Comline: ADC1729V, AND6414
Delphi: BG3961
Febi Bilstein 24476
Ferodo: DDF1550, DDF1550-1, DDF1550C, DDF1550C-1, DDF1550C-1-D
HELLA: 8DD 355 111-961, 8DD 355 111-962, 8DD 355 122-001, 8DD 355 123-921, 8DD 355 128-441
Lemforder: 30823 01
Metzger: 6110705
Meyle: 315 523 0051, 315 523 0051/PD
Mintex: MDC1757, MDC1757C
Pagid: 54379
Ruville: BRR322210
Topran: 501 232
Trucktec Automotive: 08.34.083
TRW: DF4461S
Valeo: 197175
Fits Makes: BMW
OE Part Number: 34216764655 | 34216855004
Other Part Numbers: DSK2407 | SDK6459 | BBD4473 | ADC1729V | AND6414 | BG3961
